1. Kinematic Framework: Sustaining Flexural Integrity in Continual Fast-Cycling Axes

In precision automated motion, the longevity of dynamic signal cables depends entirely on the tracking channel's interior performance. When machine gantries execute high-frequency strokes, standard alternative plastic carriers experience molecular fatigue, causing the link joints to stiffen or crack. This structural degradation introduces physical resistance against your cable jackets, creating micro-abrasions that eventually short-circuit critical control networks.

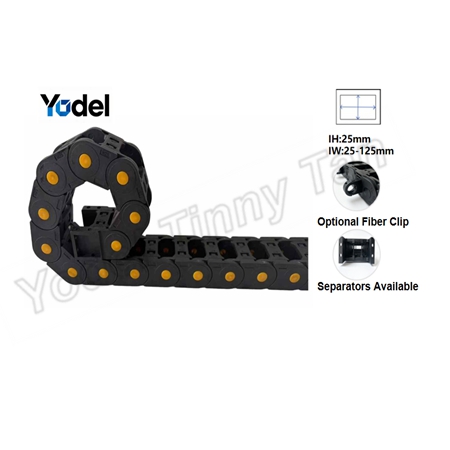

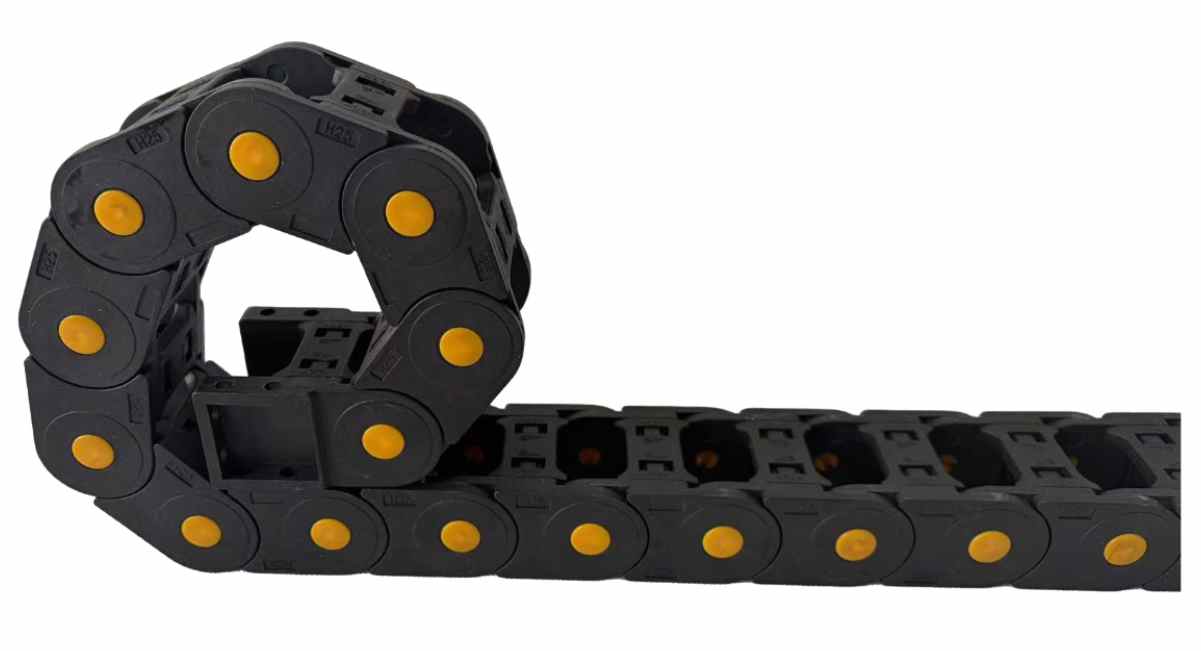

Our advanced 20mm and 25mm Nylon drag chain platform is explicitly formulated to counter continuous mechanical fatigue. Molded from an optimized, high-grade Nylon PA66 matrix, this high-resilience small drag chain system boasts exceptional elastic recovery and flexural memory. Designed as a high-smoothness plastic cable carrier, its interlocking links flex seamlessly across millions of travel sweeps, isolating your delicate data tracks, sensor cords, and pneumatic lines from dynamic mechanical stress.

2. High-Tier Polymer Dynamics: Why Our Modifying PA66 Formulation Rules the Market

High-Elasticity Molecular Matrix vs. Brittle Regrind Plastics

Cheap generic carriers mix low-grade recycled plastics into their molds, which lose their flexibility and snap under consistent bending. Our premium Nylon drag chain relies on a modified virgin polymer base that maintains structural damping capabilities. Even during rapid start-stop automation shifts, this high-flex plastic drag chain absorbs continuous operating shocks without stretching or link separation, ensuring a predictable service life across extended production periods.

 Open-Bridge Thermal Venting and Non-Abrasive Tracking Channel

Dynamic industrial wires running under non-stop cycles generate localized heat within their insulation layers. The bridge-style geometry of this advanced plastic cable carrier enables constant atmospheric cross-ventilation. This open design dissipates heat quickly while allowing fine debris, airborne dust, and factory trimmings to pass straight through the links instead of packing inside the moving small drag chain channel and scoring your cable sheaths.

 Self-Lubricating Pin-and-Bore Hinge System for Silent Operations

Harsh joint clicking indicates alignment errors and accelerating wear. Our precision injection molding process ensures strict link-to-link concentric tolerances. This ultra-smooth joint mating minimizes driving drag within the Nylon drag chain, allowing the tracking loop to glide silently along its longitudinal axis. By controlling physical link-friction, this premium plastic drag chain setup delivers highly stable tracking in noise-sensitive factory environments.

3. Target Industrial Deployments

The smooth dynamic tracking of this 20mm and 25mm plastic cable carrier series makes it highly advantageous for:

High-Speed Packaging & Labeling Machines: Operating as a fast-cycling, low-noise small drag chain protecting sensitive sensor lines.

Medium-Scale CNC Engraving & Woodworking Tables: Functioning as an open, debris-shedding Nylon drag chain handling multi-core power feeds.

Automated Laboratory & Fluid Handling Gantries: Serving as a clean, low-friction plastic drag chain ensuring smooth sample arm translation.

Multi-Axis Assembly Conveyors & Diverter Gates: Providing non-binding cable guidance within tight machine footprints.

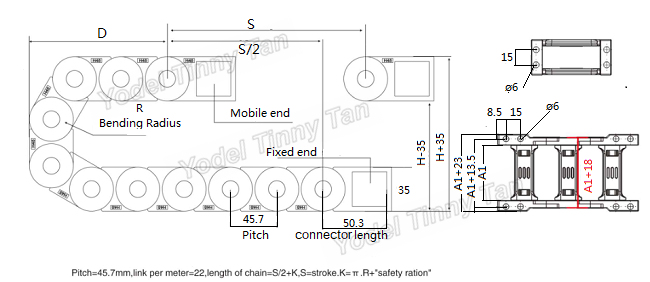

4. System Calibration Protocol: Setting Your Variable Bending Radius

To maximize the operational life of your plastic cable carrier and prevent internal cable pinching, use this standard engineering sizing routine:

1. Measure the Critical Cable Size: Find the outer diameter (OD) of the largest, stiffest wire or fluid hose within your bundled layout.

2. Apply the Minimum Safe Loop Margin: Multiply the thickest cable's OD by 10 for highly flexible data lines; multiply by 12 to 15 for rigid pneumatic hoses to protect their internal structures.

3. Confirm the Radius Match: Select the variable bending radius configuration for your 20mm or 25mm small drag chain that meets or exceeds your calculated value. This guarantees seamless joint articulation and completely eliminates internal copper wire fatigue.

5. Technical Engineering FAQs

Q: What makes this premium Nylon drag chain superior to low-cost standard plastic carriers?

A: Most standard plastic carriers use unrefined polymers that become brittle and crack under non-stop flexing. Our premium Nylon drag chain uses a modified virgin PA66 matrix. To guarantee perfect dimensional stability under extreme operating temperatures, the base nylon is fortified with subtle internal structural stabilizers. This modification ensures that the plastic drag chain retains its precise loop geometry and exceptional elastic elasticity over millions of rapid strokes, avoiding the link snapping common in inferior products.

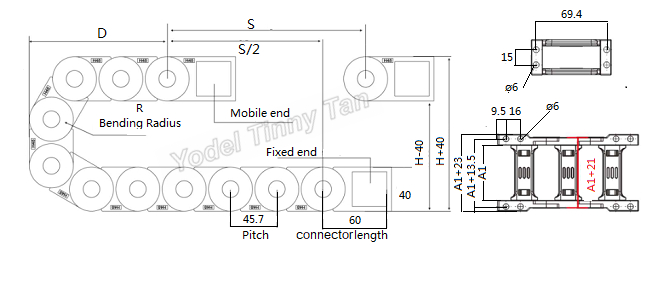

Q: How do I select between the 20mm and 25mm inner height models from this plastic cable carrier line?

A: Your choice should be determined by your cable bundle cross-section. Gather all the cables you plan to run together and measure their total stacked height. To prevent friction damage and heat buildup, you must leave a minimum physical clearance buffer of 10% inside the link chamber. If your total cable footprint configuration remains under 17mm, select the 20mm small drag chain; if your layout demands more room for thicker pneumatic hoses up to 21mm, step up to the 25mm plastic drag chain series.

Q: Can the overall travel length of this bridge-type small drag chain be modified manually on-site?

A: Absolutely. The modular snap-fit link-and-pin architecture allows for instant customization. You can easily unclip links or snap additional links together using a simple flat-head precision tool, allowing you to match the exact travel stroke of your machine gantry without buying separate pre-cut lengths.
