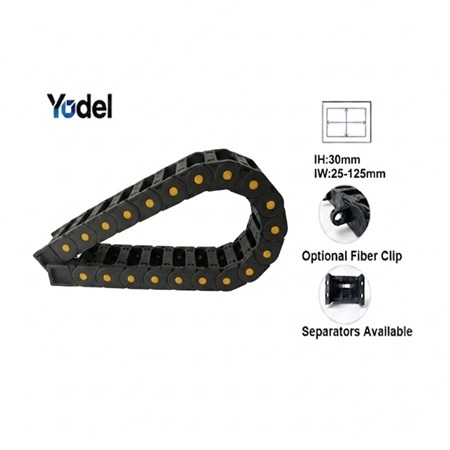

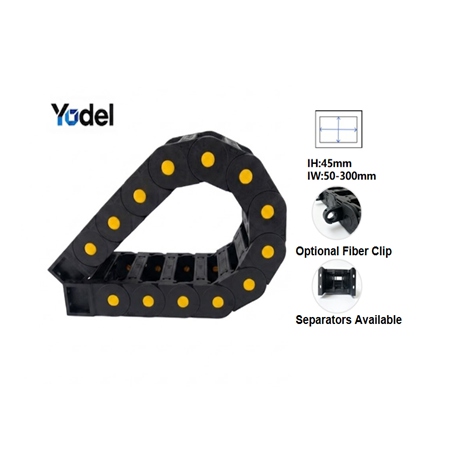

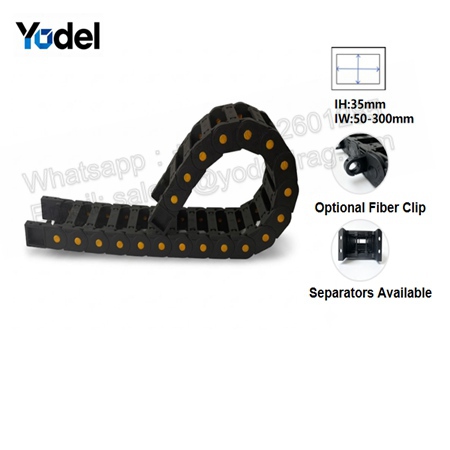

30mm 35mm 45mm Medium-Duty Plastic Cable Drag Chain – High-Toughness Bridge Type Nylon Drag Chain & Resilient Plastic Cable Carrier Series

1. Executive Kinematic Analysis: Managing Deceleration Shocks in Medium-Travel Automation

When multi-axis automation gantries transition to medium-duty payloads, managing the inertia of heavy wiring bundles becomes a critical mechanical challenge. During sudden high-speed stops, the kinetic energy of shielded power lines and thick pneumatic hoses forces a standard tracking loop to slam against its own joints. If the tracking frame is too brittle, these localized deceleration shocks cause immediate pin fractures and joint separation.

Our re-engineered 30mm, 35mm, 45mm plastic cable drag chain platform is purpose-built to absorb these rapid mechanical shocks. Utilizing a high-purity, unreinforced Nylon drag chain matrix, this series capitalizes on the natural viscoelastic dampening properties of premium Nylon PA66.

Designed as an open-bridge plastic drag chain, it flexes smoothly to dissipate sudden linear inertia. This structural framework ensures that the entire plastic cable carrier preserves its precise longitudinal alignment over millions of rapid, high-frequency strokes without suffering from joint fatigue or link-stretching.

2. Structural Engineering Specification Matrix

Kinematic Bend Profiles: Multiple customer-selectable variable bending radius configurations are engineered for every single frame dimension to eliminate internal conductor stress.

3. Core Architectural Advantages: Why Our Pure PA66 Platform Redefines Medium-Duty Tracking

High-Impact Virgin Nylon PA66: Eliminating Joint Brittle-Fracture

While heavily filled composites offer rigidity, they become brittle under continuous high-frequency impacts. Our specialized Nylon drag chain formulation preserves the natural molecular elasticity of pure PA66. This allows this heavy-duty plastic cable drag chain to handle sudden start-stop shocks without snapping its joint hinges, guaranteeing an exceptional flexural fatigue life across extended operation cycles.

Open-Bridge Thermal Venting: Rapid Heat Dissipation

Thick industrial power lines running inside closed channels generate constant thermal friction. The bridge-style geometry of this plastic drag chain ensures immediate cross-flow air ventilation. This open framework keeps your wiring harnesses cool, while allowing heavy manufacturing trimmings, composite dust, and metal shavings to pass straight through the links instead of packing inside the moving plastic cable carrier track.

Oversized Double Interlocking Pin joints for Linear Alignment

High-inertia multi-axis machinery subjects a moving tracking line to severe lateral twisting forces during sudden stops. Our precision injection-molded links feature a robust double-pin connection system. This high-precision joint structure limits side-to-side snaking, ensuring that this plastic cable drag chain guides your sensitive signal wires and high-voltage lines along a perfectly predictable path.

4. Primary Industrial Implementations

The structural resilience of this 30mm,35mm,45mm plastic cable carrier matrix makes it essential for:

Industrial CNC Machine Tools & Woodworking Centers: Operating as a chip-resistant plastic drag chain managing heavy power leads and liquid coolant hoses.

Automated Material Handling & Palletizing Robots: Functioning as a shock-absorbing Nylon drag chain that sustains sudden multi-axis deceleration shifts.

High-Cycle Packaging Machinery Gantries: Serving as a long-wearing, low-friction plastic cable drag chain running continuous 24/7 production line runs.

Automated Storage & Retrieval Systems (ASRS): Providing reliable, quiet horizontal travel loops over medium-to-long travel paths.

5. Kinetic Sizing Protocol: Calibrating Your Variable Bending Radius

To maximize the operational life of your plastic cable drag chain and prevent internal cable pinching, use this standard engineering sizing routine:

1. Isolate the Largest Diameter: Measure the external diameter (ED) of the single thickest cable or fluid hose within your bundled layout.

2. Apply the Safety Radius Factor: Multiply that ED by 10 for highly flexible data lines; multiply by 12 to 15 for heavy power lines or rigid pneumatic air hoses.

3. Select the Radius Configuration: Choose the variable bending radius for your 30mm, 35mm, or 45mm Nylon drag chain that meets or exceeds your calculated value. This guarantees smooth loop rotation and completely eliminates internal copper wire fractures.

6. Technical Engineering FAQ Desk

Q: Why should I choose an unreinforced Nylon PA66 plastic cable drag chain over a glass-fiber reinforced model for medium-duty setups?

A: It comes down to shock absorption and cable protection. For inner heights like 30mm , adding glass fiber makes the carrier very stiff, but it also makes it brittle and abrasive. When handling rapid direction changes, a glass-filled carrier transfers all sudden vibration shocks directly to the pins, which can cause them to snap. Our pure Nylon drag chain absorbs these impact forces naturally, operates much more quietly, and won't scratch or score your high-flex cable jackets over millions of cycles.

Q: How do I select the right inner height (30mm vs. 35mm vs. 45mm) from this plastic drag chain platform?

A: Your choice should be dictated by your cable bundle cross-section. Gather all your intended wires together and measure their total stacked footprint, leaving a minimum physical clearance buffer of 10% around them to prevent friction damage. If your total cable configuration height stays under 26mm, the 30mm plastic cable drag chain is perfect. For thicker multi-core lines or pneumatic hoses up to 40mm, step up to the heavy-duty 45mm plastic cable carrier series.

Q: Does the open-bridge design of this Nylon drag chain leave cables vulnerable to factory debris?

A: No, it actually prevents debris buildup. In typical woodworking, machining, and packaging environments, coarse dust and shavings find a way into any carrier. A fully enclosed chain traps these particles inside, where they grind against your moving cables like sandpaper. The open-bridge construction of this plastic drag chain allows these contaminants to fall completely through the links, keeping the inner channel clean and extending your cable service life.

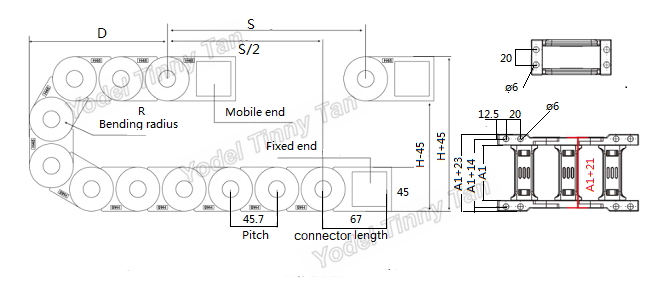

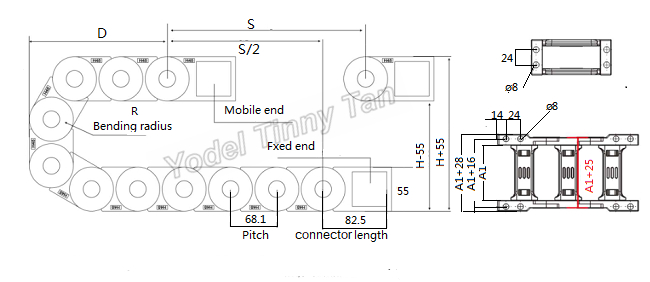

Size Table  & Technical Drawing​ :
