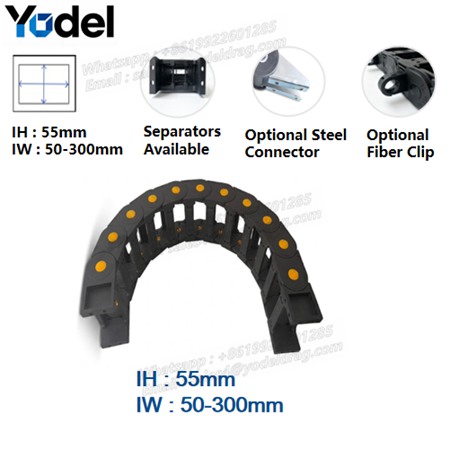

High-Capacity Bridge Type Plastic Cable Drag Chain: Engineered for Large-Scale Cable Management

Large automated machines demand massive layout flexibility. By expanding the internal frame layout to 55mm, 65mm, and 80mm, this specialized plastic cable drag chain ensures large-diameter hoses move unrestricted. The open bridge-style construction facilitates rapid heat dissipation and allows plant engineers to visually monitor internal conduits without disassembling the moving track.

We move away from standard commodity plastics. Our premium nylon drag chain utilizes an engineered crystalline polymer mix. By optimizing the Nylon PA66 matrix with specialized structural binding agents, we have achieved a plastic drag chain that delivers excellent torsional stiffness and impact resistance under continuous acceleration, avoiding brittle structural weaknesses found in generic alternatives.

Mismanaged internal lines cause operational wear and unexpected downtime. Our versatile plastic cable drag carrier integrates a highly organized internal layout system:

Slide-Lock Separators: Easily segment the link interior vertically  to prevent high-voltage links from twisting around fluid lines.

Dedicated Fiber Optic Clips: Fragile data links require specialized stabilization. These snap-in clips isolate fiber optic lines from the physical weight and resonance of neighboring power conduits, ensuring uncorrupted data transmission.

No two manufacturing floors are identical. This flexible plastic cable carrier offers an array of bending radius options. This selective curvature helps engineers manage the stress distribution across link pins during long reciprocating cycles, ensuring smooth linear acceleration.

Targeted Industrial Sectors

Built for precision and continuous runtime, this plastic cable drag chain series is widely trusted across automated industrial sectors worldwide:

Automated Laser & Plasma Cutting Machinery: Housing control loops and shielding them from high-acceleration vibration.

Large CNC Boring & Milling Centers: Delivering organized protection for multi-axis power supplies.

Gantry Cartesian Robotics: Ensuring reliable guidance during automated loading and unloading movements.

High-Speed Packaging & Material Handling Equipment: Providing steady linear tracking with minimal acoustic noise.

Technical FAQ ：

Q: What are the main design benefits of the bridge profile in this plastic cable drag chain?

A: The bridge design allows for complete structural breathability. It reduces the overall weight of the nylon drag chain while granting instant, dual-sided snap-open access to the internal cables for faster installation and servicing.

Q: How does the Nylon PA66 formula respond to harsh factory fluids?

A: This professional plastic drag chain exhibits high chemical resistance against common cutting fluids, lubricating oils, greases, and gasoline products, preventing structural degradation in harsh machining environments.

Q: Can the internal separators be adjusted after the plastic cable carrier is installed?

A: Yes. The modular design of our plastic cable drag carrier enables operators to easily slide, clip, and lock separators into place even after the track has been mounted to the machine bed.

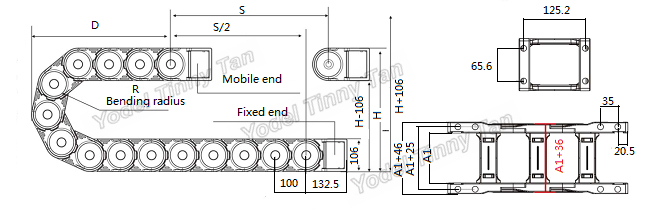

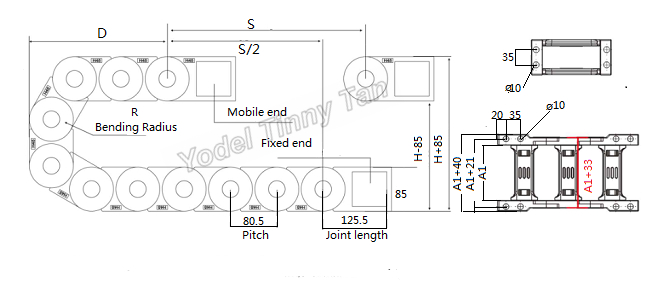

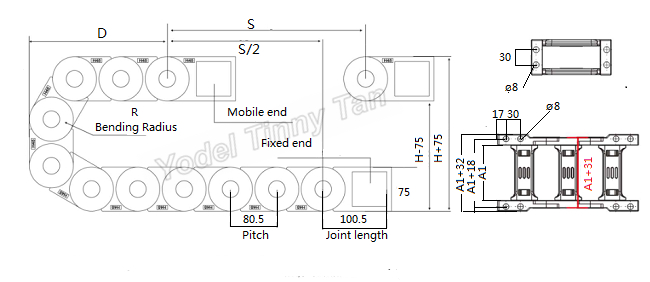

Size Table  & Technical Drawing​ :
