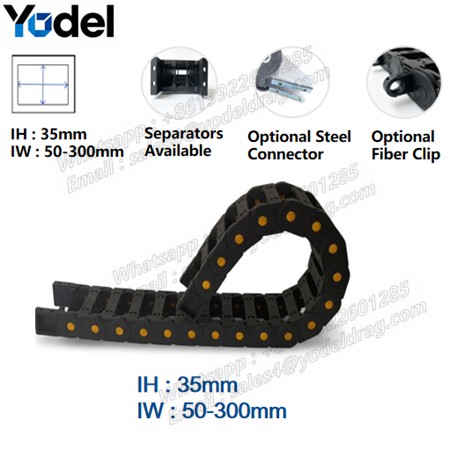

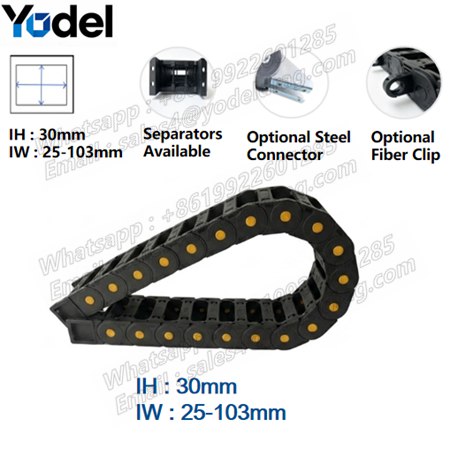

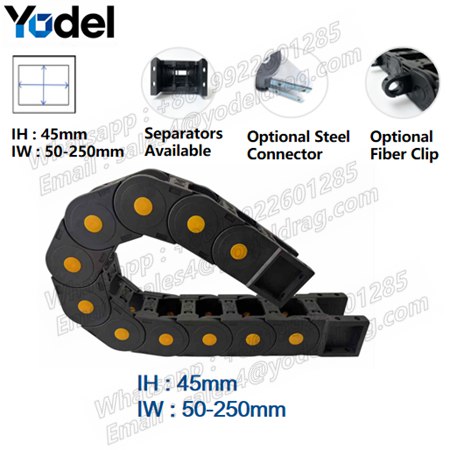

Heavy-Duty Open Bridge Plastic Cable Drag Chain – 30mm, 35mm, 45mm Inner Height Series (Pure PA66 Nylon)

Heavy-Duty Open Bridge Plastic Cable Drag Chain – 30mm, 35mm, 45mm Inner Height Series (Pure PA66 Nylon)

Dimensional Data & Bending Spectrum – Medium-Duty Bridge Cable Carrier

Section 1: Rethinking Cable Protection – The High-Toughness PA66 Advantage

Standard plastic drag chains on the market often suffer from early brittle fractures, hinge snap, or pin-wear under continuous high-acceleration motion. Our medium-duty plastic cable drag chain series (available in 30mm, 35mm, and 45mm inner height configurations) solves these issues at the molecular level.

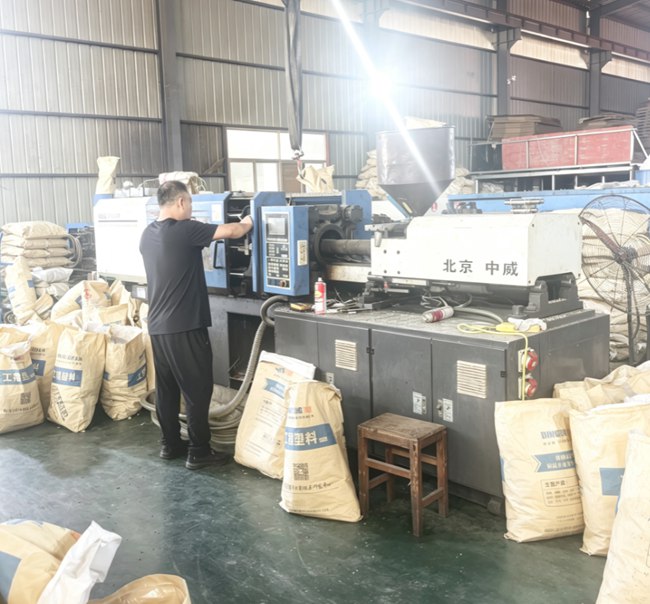

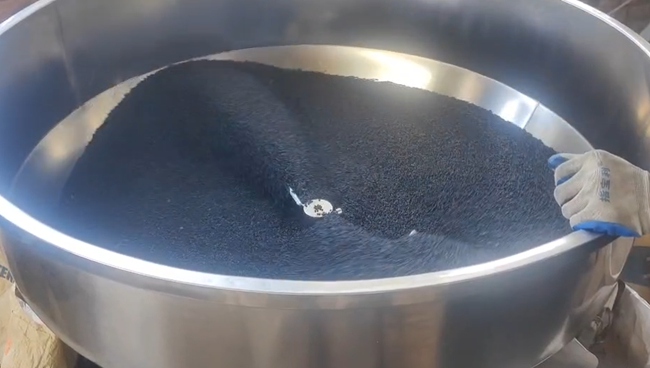

Engineered strictly from 100% virgin Nylon PA66 (Polyamide 66), this plastic cable drag chain system balances high tensile strength with dynamic elasticity. Unlike low-cost dynamic carriers that mix recycled plastic filler, our PA66 formulation delivers high flexural fatigue resistance, operating smoothly across wide temperature swings from -40°C to +120°C without deformation or cracking.

Section 2: Modular Open-Bridge Kinematics & Custom Add-On Ecosystem

The structural core of this plastic cable drag chain is its dual-side openable crossbar design. Maintenance engineers no longer need to thread long cables through narrow channels. Simply pop open the bridge frame with a flathead screwdriver, lay in your heavy power leads, signal cables, or pneumatic hoses, and snap it closed.

Beyond standard routing, this nylon plastic cable drag chain adapts to dynamic industrial environments with three custom modular upgrades:

1. Vertical & Horizontal Separation Bars: Prevent internal cable cross-friction, abrasion, and tangling during multi-axis travel loops.

2. Integrated Fiber Optic Retention Clips: Specialized rounded clips hold sensitive, small-radius optical cables securely in place without pressure points.

3. Heavy-Duty Galvanized / Stainless Steel End Connectors: Upgrade from standard plastic brackets to industrial steel mounting flanges to sustain severe start-stop inertia and vibration.

Section 3: Engineering Case Study: Solving High-Cycle Wear in Real-World Automation

Application Scenario: 24/7 Gantry CNC Router & Laser Cutting System

The Challenge: A machinery manufacturer experienced frequent signal disruption and premature cable jacket tearing on their 5-axis CNC router running at 3.5 m/s acceleration. The previous standard plastic cable drag chain suffered from pin clearance degradation, causing side-to-side snaking and severe cable friction against closed walls.

The Solution: The engineering team upgraded the machine axes to our 35mm inner height bridge-type plastic cable drag chain equipped with vertical Nylon separators and steel mounting brackets.

The Result:

Air-Flow Cooling: The open bridge architecture naturally dissipated thermal heat generated by thick motor supply lines.

Debris Evacuation: Metal shavings, wood chips, and composite dust fell through the open bridge frame instead of packing inside the tracking channel.

Service Life: Continuous operational lifespan surpassed 8 million cycles without hinge breakage or noticeable link sagging.、

Section 4: Engineering Sizing Protocol – Selecting Your Radius & Inner Height

To guarantee maximum lifespan for both your plastic cable drag chain and internal cabling, follow this simple 3-step calculation protocol before selecting your dimensional profile:

Step 1: Calculate Minimum Inner Height (Hi)

Measure the outer diameter (D) of your thickest cable or hose bundle, then apply the safety clearance factor:

Choose 30mm Inner Height: For cable bundles up to 25mm maximum diameter.

Choose 35mm Inner Height: For cable bundles up to 29mm maximum diameter.

Choose 45mm Inner Height: For heavy power cables or hydraulic lines up to 38mm maximum diameter.

Step 2: Calibrate Your Variable Bending Radius (R)

Selecting the correct bending radius prevents internal copper wire strain. Choose from our variable bending radius spectrum ranging from 55mm to 200mm (e.g., R55, R75, R100, R125, R150, R175, R200) based on your cable supplier's minimum dynamic bend rule:
