Fully Enclosed CNC Cable Chain: High-Precision Sealed Protection for 20mm & 25mm Machinery Systems

Introduction

In high-velocity automated machinery and multi-axis machining centers, shielding internal conduits from volatile work envelope debris is vital for avoiding unscheduled downtime. Our compact cnc cable chain series introduces a premium, fully sealed tracking framework engineered for 20mm and 25mm interior height thresholds. Injection-molded from a customized Nylon PA66 matrix embedded with molecular structural stabilizers, this high-flexibility nylon drag chain delivers superior torsional stiffness and low-acoustic travel over millions of continuous kinetic cycles.

Designed specifically to defend critical wiring against abrasive wood filings, hot metallic turnings, and corrosive cooling mists, this dense plastic drag chain system ensures uninterrupted link articulation. This customizable plastic cable chain solution gives mechanical designers the perfect dynamic boundary to safely guide communication bus lines, power feeds, and fluid lines within constrained equipment footprints.

Real-World Machinery Application Case Studies

This 20mm/25mm enclosed plastic cable carrier is field-tested and actively deployed in a wide array of high-precision industrial machinery:

1: Multi-Axis CNC Woodworking Routers & Carving Machines

Operating conditions ：High concentrations of fine MDF dust, sawdust, and airborne wood particulate.

Operational Performance：Standard open tracks allow fine dust to pack into the hinges, leading to joint snapping. Installed as an axis-guide cnc cable chain, our 20mm fully enclosed series blocks 100% of fine dust. The snap-shut lids protect the vulnerable stepper motor leads, ensuring the router maintains precise cutting tolerances without tracking drag.

2：Precision Fiber Laser & Plasma Cutting Tables

Operating conditions：High-acceleration acceleration，extreme thermal sparks, and slag splatter.

Operational Performance：In 25mm configurations, this high-grade nylon drag chain guides sensitive fiber optic laser delivery lines and assist-gas hoses. The modified Nylon PA66 composite matrix resists ambient thermal sparks, while our specialized Fiber Optic Clips ensure the fragile optical fibers maintain an optimal, stress-free bending radius during intense high-speed nesting cycles.

3：High-Speed SMT Pick-and-Place & PCB Assembly Machinery

Operating conditions：Ultra-high-frequency reciprocating cycles, tight space envelopes, and zero-tolerance for static buildup.

Operational Performance： Functioning as a low-profile cable guide chain, the 20mm low-decibel links slide effortlessly inside compact electronic assembly cells. The stable link pins minimize micro-vibrations, ensuring that the camera data lines and pneumatic vacuum lines feed smoothly to the placement head, maximizing components-per-hour (CPH) efficiency.

Advanced Engineering Advantages

1. 100% Sealed Architecture for Severe Debris Mitigation

Industrial millings can ruin generic cable jackets in weeks. This fully enclosed plastic cable chain creates an impenetrable shield that repels foreign contaminants. Despite its total sealing capabilities, the link lids can be easily unlatched from the outer radius, allowing maintenance crews to swap internal lines without breaking down the entire multi-axis carriage.

2. Formulated Nylon PA66 Material (Wear & Kinetic Resistance)

Moving past cheap, unreinforced recycled plastics, our premium nylon drag chain relies on an advanced, modified polymer compound. By optimizing the base Nylon PA66 properties to resist high friction and localized mechanical shock, we have crafted a lightweight cable guide chain that maintains structural straightness during long-term operational wear.

3. Streamlined Internal Layout: Vertical Dividers & Optical Clips

Internal line twisting causes unexpected signal dropouts. Our professional-grade plastic cable carrier solves this via a smart internal organization system:

Vertical-Only Separators: These adjustable vertical dividers lock securely into the link frame, allowing you to split the internal width into dedicated clean channels, keeping high-voltage power separated from feedback wires.

Integrated Fiber Optic Clips: Delicate data lines cannot handle standard cable weight. Our specialized clips isolate fragile fiber optics in a stress-free position, preventing signal attenuation.

 Technical FAQ

Q: Which machinery axis benefits most from this enclosed cnc cable chain?

A: It is highly recommended for the X and Y axes of CNC machines and laser cutters, where exposure to falling debris, chips, and sparks is highest. The sealed design of this plastic cable chain prevents debris from accumulating inside the link pivots.

Q: How do the vertical separators perform in high-speed SMT or laser machinery?

A: The vertical dividers lock directly into the inner radius molding of the Nylon PA66 link. They remain firmly upright even during high-acceleration reciprocating cycles, preventing internal lines from migrating or overlapping.

Q: Is this plastic drag chain resistant to industrial cutting fluids and oils?

A: Yes, our specialized Nylon PA66 formulation exhibits exceptional chemical stability against cutting oils, synthetic coolants, lubricants, and common chemical reagents found on automated factory floors.

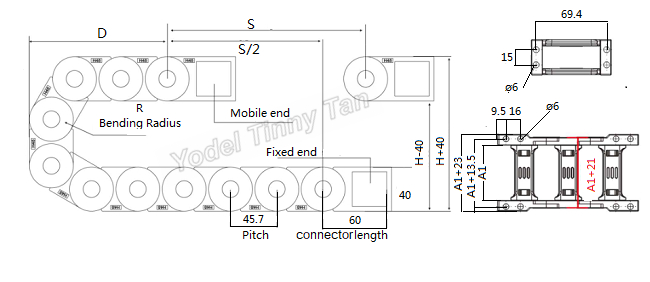

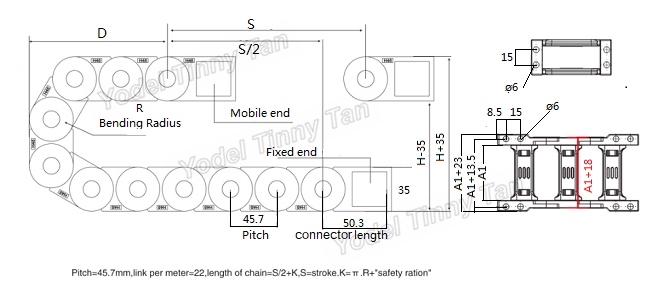

Size Table  & Technical Drawing​ :
