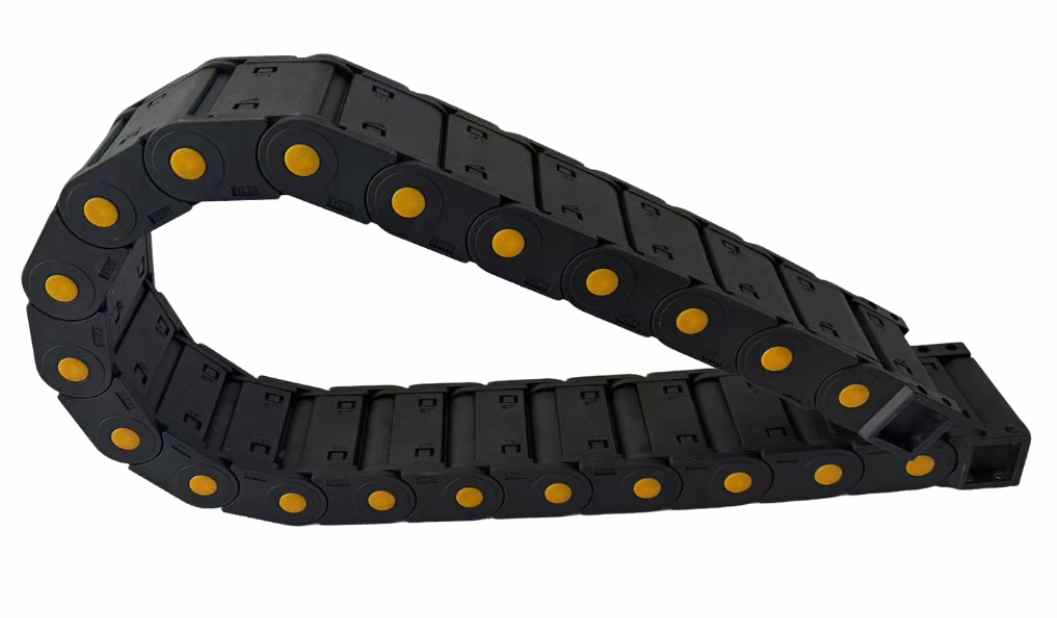

Precision Enclosed Plastic Cable Carrier (55mm/65mm/80mm Inner Height) – Customizable Nylon Cable Drag Chain with Vertical Separators

Product Overview

When managing dynamic power cables in hostile machining environments, airborne debris is your number one enemy. Standard open carriers fail to shield sensitive lines from fine dust, metal shavings, or wood chips.

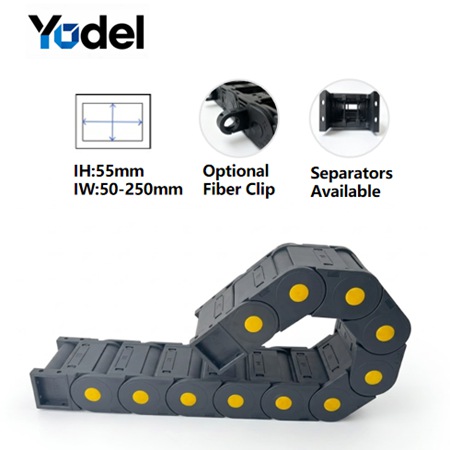

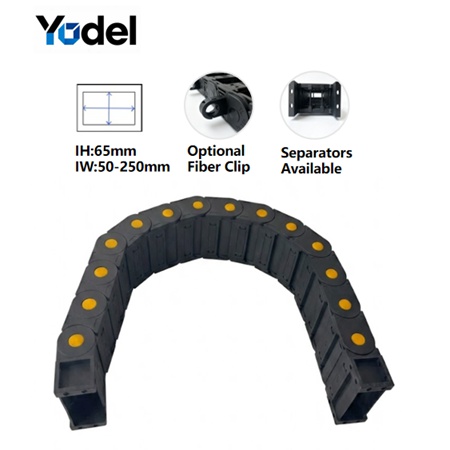

Our specialized plastic cable carrier series—featuring standard inner heights of 55mm, 65mm, and 80mm—offers a completely sealed environment to keep your automated systems running without interruption. Crafted from premium Nylon PA66 matrix with subtle fiber integration, this nylon cable drag chain achieves the perfect balance between long-term flexibility and dimensional stability, entirely steering clear of the brittle stiffness found in traditional thick-walled alternatives. Whether you are running complex CNC lines or specialized automation gantries, this plastic cable chain guarantees reliable cable routing under continuous high-speed travel.

Technical Blueprint & Feature Highlights

Unlike generic cable tracks, our nylon drag chain is engineered from the ground up for modular optimization. By treating the carrier not just as a plastic channel, but as an active cable protection ecosystem, it delivers unmatched operational longevity.

Sealed Debris Shielding: The fully enclosed design of this cable carrier chain provides a 360-degree protective barrier, preventing external contaminants from causing cable jacket friction and premature failure.

Smart Vertical Compartmentalization: Say goodbye to tangled internal lines. Our system accommodates precision vertical separators, allowing you to create dedicated, isolated chambers for high-voltage power lines, low-voltage signal wires, or specialized fiber optic clips. Note: This series features optimized vertical segregation only, preventing lateral shifting.

Tailored Dynamics: With a comprehensive selection of bending radii (R) for each height variant, this cable guide chain can be configured to match the exact clearance and kinematic requirements of your machinery.

Smooth Inner Architecture: The interior crossbars of the cable track chain are polished to an ultra-smooth finish, drastically reducing the wear rate on moving jackets, making it the ultimate cable hose carrier for both pneumatic lines and electrical conduits.

In-Depth Case Study: The 80mm Enclosed Carrier in Action

To understand how our plastic cable carrier transforms machinery performance, let's look at a real-world integration on a high-speed industrial wood-milling CNC router.

The Challenge: A manufacturer was running a multi-axis CNC system with a bundle of heavy-duty power lines, feedback signals, and high-pressure pneumatic hoses. The open-style tracks they previously used were continuously clogging with fine MDF wood dust, causing the cables to twist, overheat, and snap every few months.

The Solution: We deployed our 80mm inner height enclosed nylon cable drag chain configured with custom vertical separators.

The 80mm depth provided ample volumetric clearance for the thick main spindle power lines.

The vertical separators successfully isolated the sensitive feedback signal lines from the electromagnetic interference (EMI) of the main power cables.

The fiber optic clips securely locked the delicate optical sensor lines into a fixed, low-stress position along the neutral axis of the chain.

The Result: The fully enclosed profile completely blocked the ingress of fine MDF dust. The plastic cable chain operated smoothly across a 6-meter travel stroke at 3m/s, extending the cable lifespan by over 400% and completely eliminating unscheduled maintenance downtime.

Sizing & Configuration Guide

Selecting the wrong cable carrier chain size is the leading cause of premature system wear. Follow our expert 3-step formula to choose between our 55mm, 65mm, and 80mm variants:

Step 1: Calculate the Inner Height (Hi) Requirement

Gather all cables and hoses that will run through the cable track chain. Find the single thickest cable or hose diameter ($d_{max}$).

The Golden Rule: The inner height of your cable hose carrier must include at least 10% to 15% safety clearance above the thickest cable.

Formula : Hi​≥dmax​×1.15

If your largest hose is 45mm, choose our 55mm series.

If your largest hose is 55mm, step up to our 65mm series.

If your largest hose is up to 68mm, utilize our 80mm series.

Step 2: Determine Internal Layout with Vertical Separators

Do not stack cables loosely on top of one another. Use our vertical separators to isolate distinct lines.

Ensure that the total combined widths of all cables, plus the 2mm thickness of each vertical separator, plus a 10% side clearance, does not exceed the internal width (Bi) of the nylon drag chain.

Step 3: Select Your Bending Radius (R)

The bending radius is determined by the stiffest cable in your bundle. Look at your cable manufacturer's datasheet for the "Minimum Dynamic Bending Radius" (usually 8 × to 12 × the cable diameter).

Select the bending radius (R) of the cable guide chain that matches or slightly exceeds the largest minimum bending radius requirement of your cables. A larger radius reduces cable stress but requires more vertical clearance space in your machine housing.

Ready to Optimize Your Cable Management Strategy? Don't guess on your kinematics layout. Contact our engineering team today with your cable diameters, travel lengths, and speed requirements. We will provide a complete blueprint configuration for your custom plastic cable carrier system.

Request a Custom 24-Hour Quote !

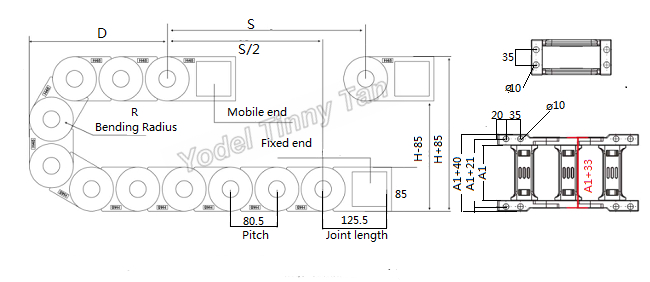

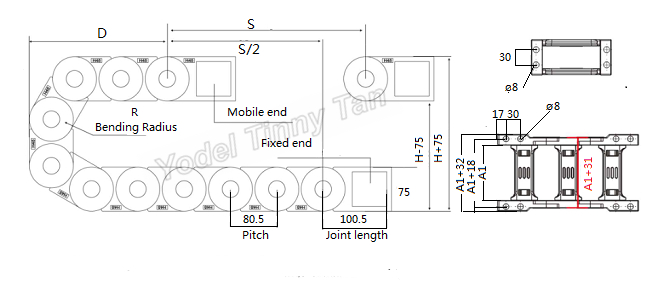

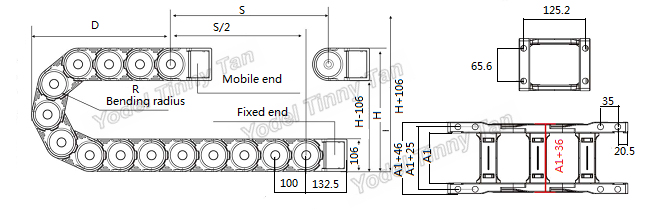

Size Table  & Technical Drawing​ :
