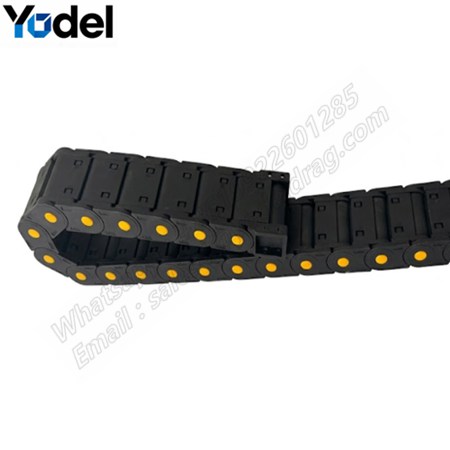

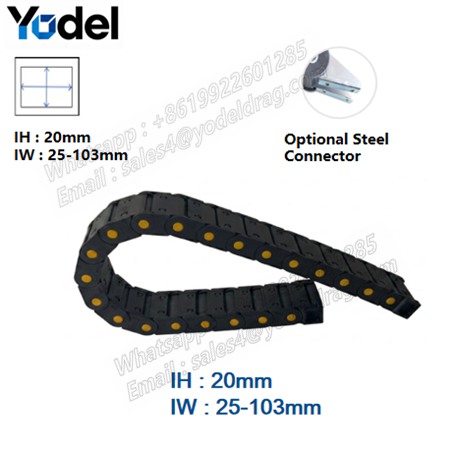

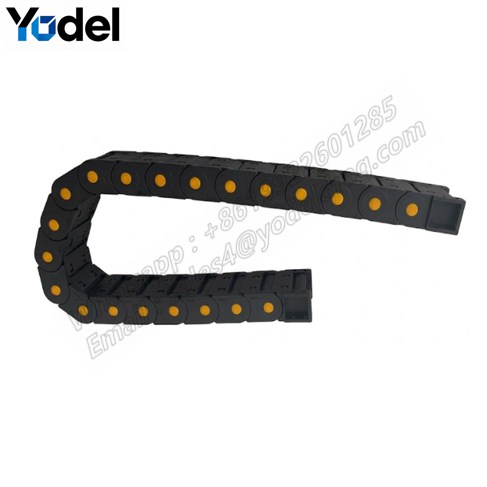

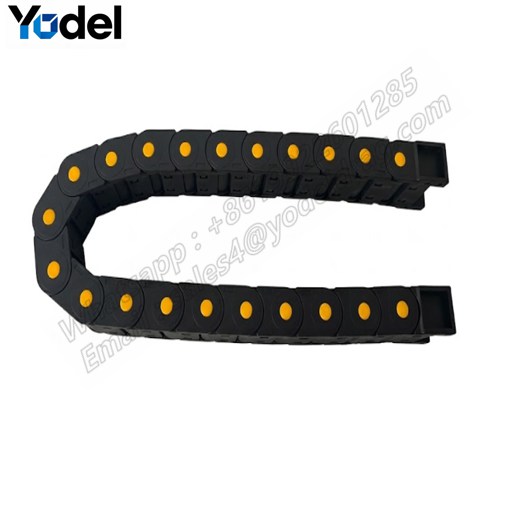

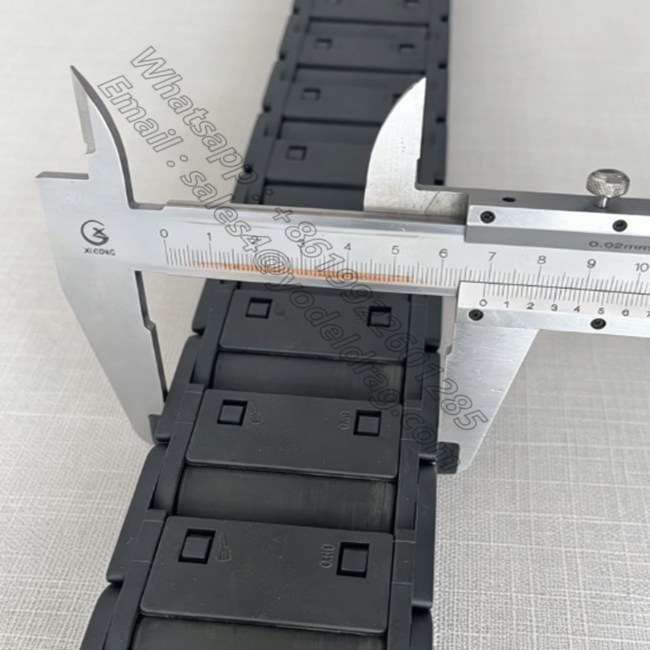

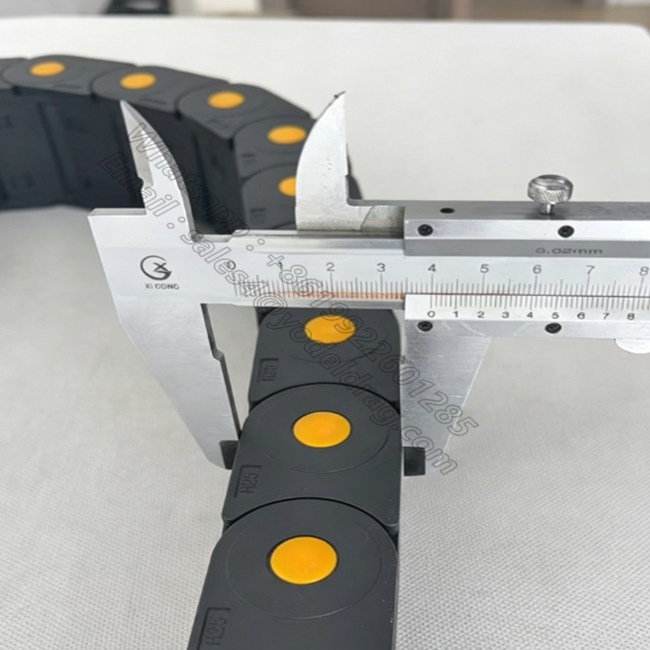

Industrial Enclosed CNC Cable Chain – 20mm & 25mm Inner Height High-Rigidity PA66 Nylon Cable Carrier

Heavy-Duty Enclosed CNC Cable Chain – Ultimate Wiring Shield for Modern Machining Tools

When high-speed CNC milling cutters shear through solid alloy blocks, flying hot metal swarf and pressurized coolant sprays threaten your machine’s critical wiring. A conventional open-style drag chain leaves encoder cables and pneumatic lines vulnerable to physical abrasion, chemical corrosion, and sudden mechanical jams. Our premium enclosed cnc cable chain is specifically built to conquer these harsh shop-floor conditions. Precision injection-molded from pure virgin PA66 reinforced with 30% structural glass fiber, this fully sealed nylon cable carrier forms an impenetrable protective barrier that keeps your automated axis running continuously without unexpected downtime.

Technical Parameters for 20-25mm Inner Height Bridge CNC Cable Chain

Why Our Enclosed CNC Cable Chain Outperforms Standard Plastic Cable Carriers

Unlike standard plastic tracks that fail under high-frequency reversing motions or crack when exposed to synthetic machining lubricants, our engineering team redesigned the link geometry and material compound to set a new benchmark for endurance and versatility in the cnc cable chain market:

Uncompromising Swarf & Coolant Isolation: The interlocked sealed covers create a smooth, continuous outer shell. Hot iron filings, aluminum chips, fine wood dust, and grinding slurry slide right off without penetrating the internal cable cavity.

Raw PA66 + 30% Glass Fiber Matrix: We strictly prohibit the use of recycled regrind plastics. The addition of 30% glass fiber dramatically enhances tensile strength, torsional rigidity, and dynamic fatigue resistance across temperature extremes from -40°C to +130°C.

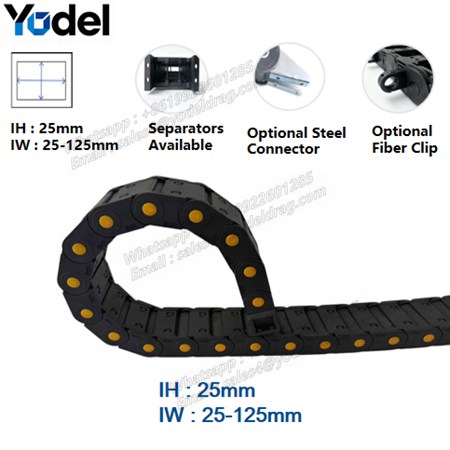

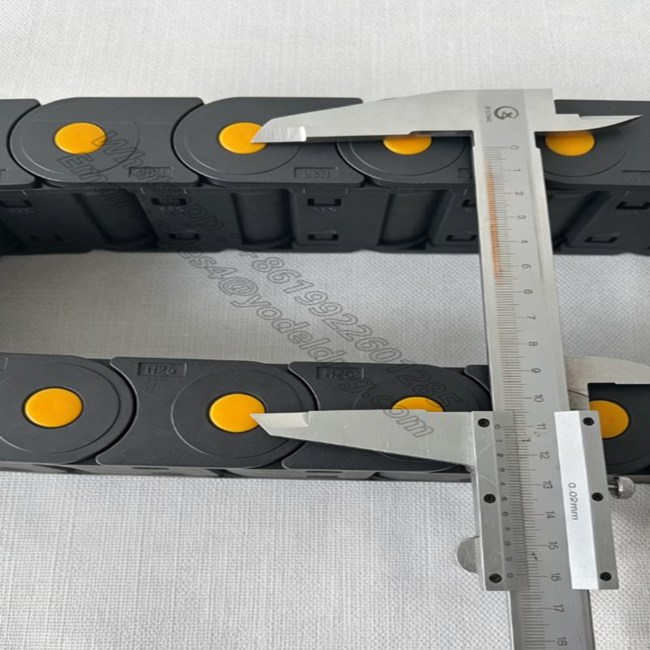

Customizable Inner Clearance (IH 20mm & IH 25mm): Available in 20mm and 25mm inner heights, this versatile cnc cable chain supports bending radiuses from R55 up to R200mm, accommodating everything from compact servomotor feedback lines to heavy hydraulic hoses.

Snap-Open Maintenance Access: Flip-open outer covers allow maintenance technicians to install pre-harnessed cable bundles directly into the carrier channel, eliminating the tedious task of threading long wires through narrow openings.

Modular Hardware Adaptations: Tailor-Made for Complex Automation

Every industrial movement system presents unique mechanical mounting challenges. To deliver unmatched installation flexibility, our 20mm and 25mm inner height cnc cable chain series offers three specialized hardware upgrades:

1. Rugged Heavy-Duty Steel End Brackets

For applications experiencing aggressive G-force acceleration, intense vibration, or long cantilevered travel strokes, standard plastic mounting feet can suffer fatigue failure over time. Both our 20mm and 25mm cnc cable chain models can be retrofitted with heavy-gauge steel end connectors. Electro-galvanized for superior corrosion resistance, these steel brackets securely lock the chain ends to your CNC frame or moving gantry, distributing mechanical stress evenly across the joint.

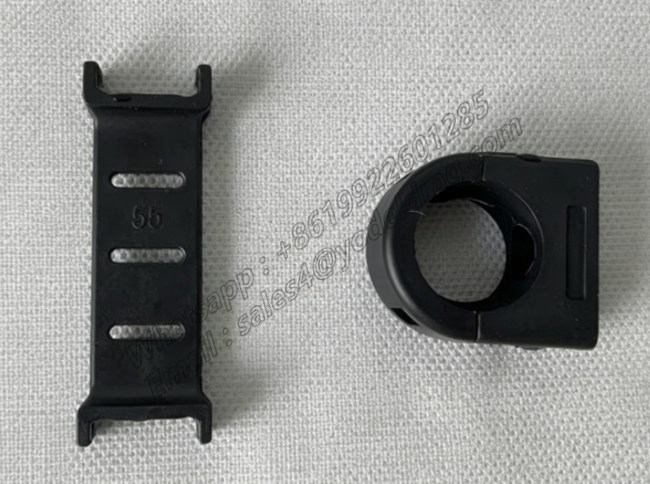

2. Integrated Side-Link Optical Fiber Clips

Sensitive fiber optic lines and laser signal conduits require isolation from heavy power cables to prevent signal distortion and physical pinch damage. The 25mm series cnc cable chain features optional external optical fiber clips mounted directly on the outer link pins. This clever design routes ultra-sensitive communications outside the main cavity while keeping them completely synchronized with axis motion.

3. Internal Vertical & Horizontal Separators

Cable jacket friction is a primary cause of wire failure inside moving tracks. Our 25mm series cnc cable chain offers customizable snap-in vertical dividers and horizontal shelving. By creating dedicated compartments for electrical wiring, pneumatic tubes, and oil hoses, these separators eliminate line twisting and reduce dynamic internal wear.

Real-World Engineering Case: Protecting a 5-Axis Gantry Router

The Challenge: A high-speed CNC aerospace machining center was experiencing weekly encoder communication faults on its Y-axis. Hot titanium shavings and high-pressure cutting coolant were penetrating the existing open-frame drag chain, melting cable jackets and clogging link joints.

The Solution: The facility upgraded to our 25mm inner height enclosed cnc cable chain fitted with 30% glass fiber reinforced PA66 links, internal vertical separators, and heavy-duty steel end connectors. A bending radius of R100mm was selected to fit within the machine's compact side-trough clearance.

The Result: The fully sealed outer casing successfully repelled all cutting debris and coolant spray. Signal interference vanished immediately, cable lifespan was extended by over 300%, and the steel end brackets eliminated axis vibration at high acceleration rates.

Size Selection & Engineering Calculation Guide

Choosing the correct cnc cable chain dimensions is critical for maximizing both cable lifespan and machine operating efficiency. Follow these steps when specifying your system:

1. Calculate Cable Clearance: Measure the outer diameter (OD) of your thickest cable or hose. The inner height (IH) of the cnc cable chain must be at least 10% to 20% larger than the maximum cable OD.

Select IH 20mm if your maximum cable/hose OD is below 16mm.

Select IH 25mm if your maximum cable/hose OD is between 16mm and 21mm.

2. Determine Inner Width (IW): Sum the outer diameters of all cables and hoses planned for the channel, adding a 10% safety margin between adjacent lines. Choose an IW option (e.g., 25mm to 125mm) that accommodates the total width or utilizes vertical separators to stack cables safely.

Select Minimum Bending Radius (R): Consult your cable manufacturer’s minimum dynamic bend radius spec (typically 8x to 10x the cable OD). Choose a matching radius from our standard curve options: R55, R75, R100, R125, R150, R175, or R200mm.

Frequently Asked Questions (FAQ)

Q1: Can I mix hydraulic hoses and electrical wires inside the same cnc cable chain?

Yes, provided you use our internal vertical separators. Placing heavy, flexible hydraulic hoses directly against delicate signal or servo cables without separation can lead to physical crushing and premature jacket abrasion. Our snap-in separators maintain a dedicated physical boundary between fluid lines and electrical wiring.

Q2: Why choose an enclosed cnc cable chain over an open bridge-type carrier?

Open bridge-type carriers are lighter and offer higher ventilation, making them ideal for clean automation environments. However, in CNC machining, laser cutting, woodworking, or stone processing, airborne chips and slurry will enter an open chain and rapidly destroy the internal cables. An enclosed cnc cable chain acts as a total protective shield against flying debris, hot swarf, and coolant splash.

Q3: What are the benefits of swapping to steel end brackets instead of standard plastic ones?

While plastic end brackets are suitable for standard automation speeds, steel end brackets offer superior mechanical rigidity. On heavy CNC machinery with high acceleration, long travel strokes, or severe operating vibration, steel brackets prevent stress cracks at the anchor points and guarantee a stable, fatigue-free connection to your machine frame.

Q4: How does virgin PA66 nylon compare to cheaper plastic materials used in budget drag chains?

Budget cable carriers often use recycled polypropylene (PP) or low-grade regrind nylon, which become brittle under UV exposure, crack in cold weather, and sag during rapid movements. Our cnc cable chain is manufactured strictly from 100% virgin PA66 nylon blended with 30% structural glass fiber, ensuring high dynamic impact toughness, flame retardancy (UL94 V-2), and a continuous flex life exceeding millions of motion cycles.

Q5: What bending radius should I choose for high-flex control cables?

As a rule of thumb, select a bending radius (R) that is at least 8 to 10 times the outer diameter of your largest cable. A larger bending radius reduces internal copper strand stress and dynamic heat buildup, significantly extending cable operating lifespan inside the cnc cable chain.
