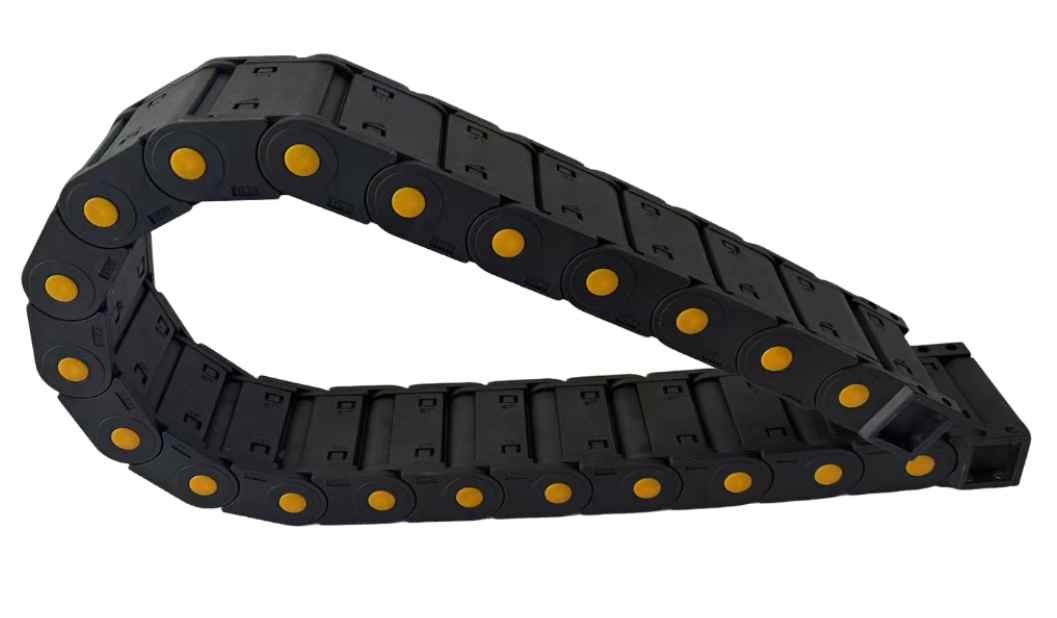

Mid-Range Enclosed Plastic Cable Chain: Advanced Sealing & Cable Hose Carrier System

Introduction

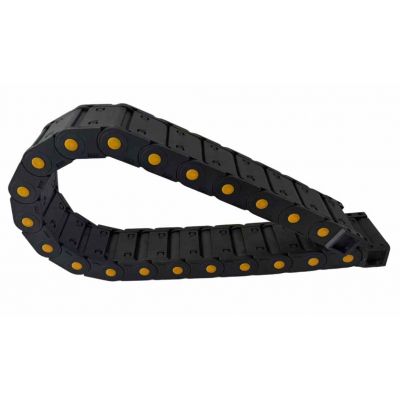

In modern automated manufacturing, protecting mid-size conduit lines from structural stress and environmental hazards is key to continuous operational efficiency. Our engineered plastic cable chain series delivers a fully enclosed, heavy-particle-repelling framework tailored for 30mm, 35mm, and 45mm interior height specifications. Injection-molded from a specialized high-density Nylon PA66 matrix with advanced structural binding modifiers, this robust nylon cable drag chain ensures excellent wear resistance, quiet movement, and prolonged structural integrity under dynamic loads.

Whether acting as a compact cable guide chain or a heavy-duty cable hose carrier, this completely sealed profile forms an impenetrable boundary against flying metallic turnings, sharp abrasive dust, and hot slag splatters. This versatile plastic cable carrier system guarantees that your sensitive power links, pneumatic feeds, and feedback lines remain free from localized friction, making it the definitive choice for challenging industrial environments.

Sizing & Selection Guide

To prevent internal crowding and physical jacket wear, selecting the proper internal profile is critical. Industry standards dictate that internal cables and fluid lines must have a clearance safety margin of at least 10% - 15% of the chain's interior height.

1. Dimension Matrix

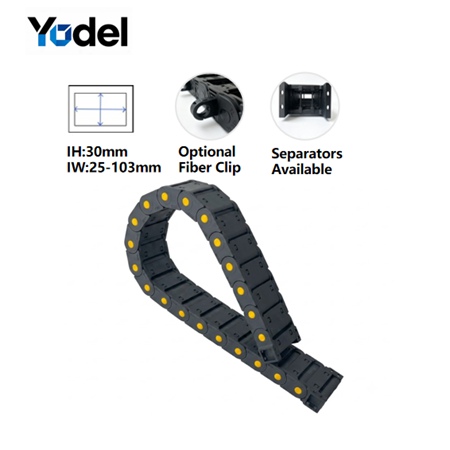

30mm Interior Height Series: Ideal for multi-axis servo cables and small-diameter pneumatic lines up to 25mm maximum outer diameter.

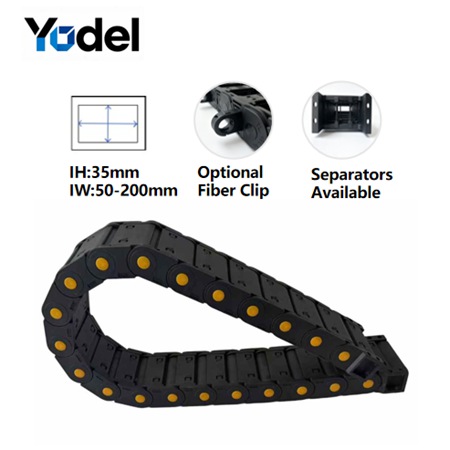

35mm Interior Height Series: The sweet spot for medium-voltage industrial power links and localized water-cooling conduits.

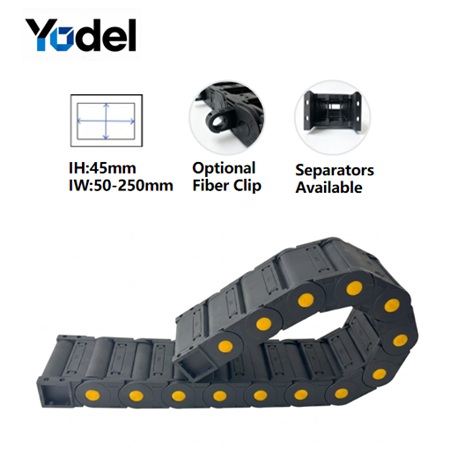

45mm Interior Height Series: Designed for heavy-load automated applications requiring thick corrugated pneumatic lines or multiple shielded data loops.

2. Bending Radius R Configuration

Available in a broad selection of bending radii, this adaptable plastic cable chain allows machinery builders to perfectly calibrate the dynamic sweeping curve. A smaller radius maximizes tight enclosure spaces, while an expanded radius minimizes the mechanical flexing stress applied to thicker internal conduits.

Real-World Machinery Applications: Operational Performance

This 30mm/35mm/45mm sealed plastic cable drag chain has been stress-tested and actively deployed across demanding industrial setups:

1：Medium-to-Large Fiber Laser Cutting Machines

Operating Conditions: Intense high-speed directional tracking (>1.2g acceleration) coupled with continuous exposure to hot metallic sparks and molten slag.

Operational Performance: Standard bridge carriers allow hot sparks to land directly on sensitive fiber optics, causing immediate laser signal decay. Configured as a 35mm fully closed nylon cable drag chain, our system seals out 100% of sparks. The specialized Fiber Optic Clips hold fragile glass-core lines securely in a neutral stress axis, preventing micro-bending during high-acceleration nesting runs.

2：Multi-Axis Cartesian Gantry Robots & Material Handlers

Operating Conditions: Long linear travel distances with a mix of heavy electrical cables and vibrating hydraulic supply tubes.

Operational Performance: This system excels as a multi-media cable hose carrier. In a 45mm setup, our snap-in vertical separators divide the inner width into strict, isolated vertical chambers. This completely blocks thick, pulsating fluid hoses from rubbing against adjacent low-voltage sensor lines, eliminating electrical cross-talk and structural friction.

3：Aluminum Profile & Metal CNC Machining Centers

Operating Conditions: Flooded with liquid coolants, greasy lubricants, and razor-sharp stringy aluminum chips.

Operational Performance: Serving as a reliable cable guide chain, the sealed lid design forces sharp metal waste to slide right off the outer frame profile. The high-performance Nylon PA66 compound prevents chemical degradation from cutting oils, ensuring the links do not swell or lose pin-stiffness over millions of cycles.

 Advanced Structural Advantages

1. Total Chip Protection with Rapid Outer-Radius Access

Unlike traditional sealed tubes that are difficult to service, our advanced plastic cable chain features snap-open lids along the outer radius. Maintenance crews can easily pop open specific links to replace a cable or fluid hose within minutes, keeping machine down-time close to zero while enjoying the full benefits of an unyielding dust shield.

2. High-Strength Nylon PA66 Matrix (Balanced Polymer Engineering)

We don't use weak, recycled commodity plastics. This professional plastic cable carrier utilizes a modified crystalline polymer formula that balances rigidity with flexible toughness. This ensures that the track maintains a long unsupported length (free-carrying distance) even when fully loaded with heavy line payloads, eliminating structural sagging.

3. Vertical-Only Segmentation for Strict Line Isolation

To maximize horizontal space within the 30mm-45mm height envelope, we utilize highly secure vertical-only dividers. These vertical separators slide and lock into pre-molded tracks on the link floor, keeping internal lines standing parallel and preventing thin cables from getting crushed underneath heavier conduits.

Technical FAQ

Q: Can this plastic cable chain handle both electrical lines and pneumatic hoses simultaneously?

A: Yes, it is explicitly designed as a combined cable hose carrier. Our vertical separators provide the perfect channel isolation to run high-pressure pneumatic lines alongside electrical links without mutual interference.

Q: How does this model function as an efficient cable guide chain for long-travel strokes?

A: The modified Nylon PA66 formula features an exceptionally low coefficient of friction at the pivot pins. This reduces the mechanical pulling force required by the machine motor, allowing the nylon cable drag chain to slide smoothly inside guide troughs over extended distances.

Q: Are the lids on this plastic cable carrier easy to detach during routine machine checks?

A: Yes, the snap-shut lids are engineered for quick-access latching. They stay completely sealed during fast-paced machinery operations but can be quickly unlocked using a standard screwdriver for rapid inspection.

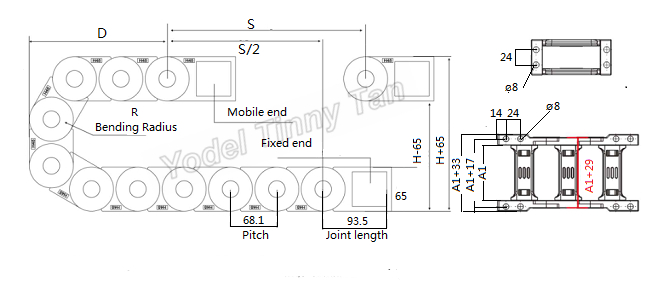

Size Table  & Technical Drawing​ :
