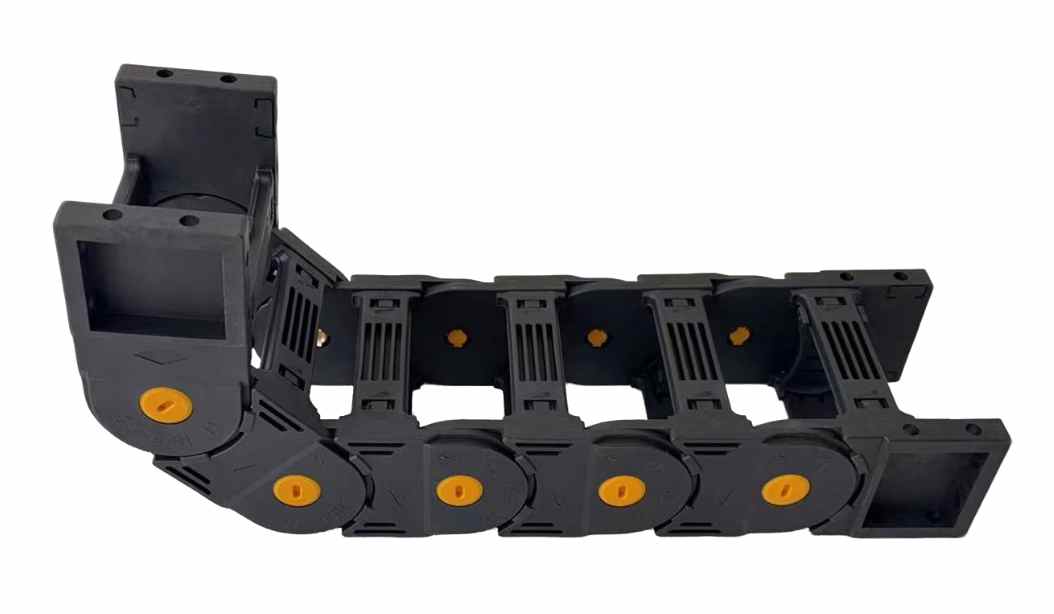

Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers
Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers

Reinforced Enclosed Nylon Cable Drag Chain: 45mm & 55mm Internal Height Cable & Hose Carriers

Product ID : HC45/HC55
Product Attributes :

1. Inner Height:45mm  55 mm

2. Crossbar:Thickened

3. Side Plates:Thickened

4. Material:PA66 Nylon + 30% Glass Fiber

5. Style:Fully enclosed

6. Add-ons:Separators, steel connectors , fiber optic clip

7. Temperature Range:-40°C to 120°C

8. Suitable Industries:CNC Machining | Industrial Robotics | Mining | Construction | Port & Lifting | Logistics & Storage | Stone Processing | Metal Forming | Hydraulic Machinery

Product Description

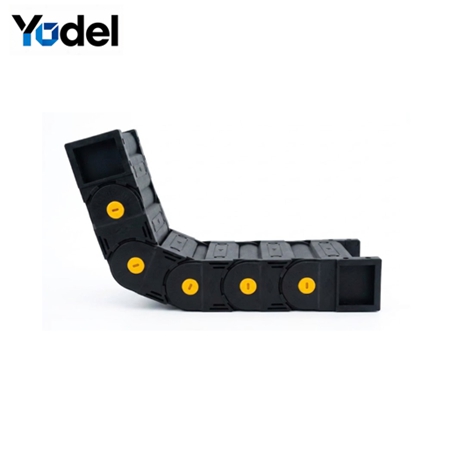

Total Enclosed Debris Shield

Aggressive industrial machining zones saturated with high-velocity metallic chips and abrasive dust demand absolute physical protection for sensitive moving circuits. Designed with a fully sealed cover structure, our industrial-grade nylon cable drag chain provides ultimate 360-degree shielding against harmful workshop contaminants. Built with thickened sidewalls and robust side frames compared to standard economy tracks, this high-capacity nylon cable drag chain completely eliminates mid-span sag while stabilizing multi-conduit movement across high-speed dynamic axes.

Advanced PA66 Polymer Formula

Uncompromising structural endurance stems directly from advanced material science and precision polymer engineering. Every component segment of our nylon cable drag chain family is precision-molded from virgin Polyamide 66 combined with a 30 percent structural glass fiber matrix. This specialized engineering composite delivers extraordinary tensile stiffness, superior impact endurance, and enduring thermal stability under grueling workshop conditions. Integrated anti-friction elements lower articulation noise while offering dependable dust-proof, chip-proof, and wear-resistant defense.

Technical Specifications (45mm Series Enclosed Type)

Model Internal Dimension
(H×W) mm
External Dimension
(H×W) mm
Bending Radius
mm
Pitch
mm
Chain Links per Meter
pcs
Max Cable OD
mm
Opening Method

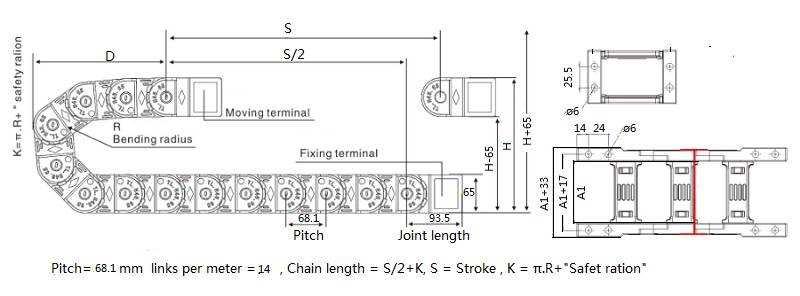

HC45.50 45×50 65×77 R75
R100
R125
R150
R175
R200
R250
R300
68.1 14 40.5 Enclosed type
HC45.60 45×60 65×87
HC45.75 45×75 65×102
HC45.90 45×90 65×117
HC45.100 45×100 65×127
HC45.125 45×125 65×152
HC45.150 45×150 65×177
HC45.175 45×175 65×202
HC45.200 45×200 65×227

Technical Specifications (55mm Series Enclosed Type)

Model Internal Dimension
(H×W) mm
External Dimension
(H×W) mm
Bending Radius
mm
Pitch
mm
Chain Links per Meter
pcs
Max Cable OD
mm
Opening Method

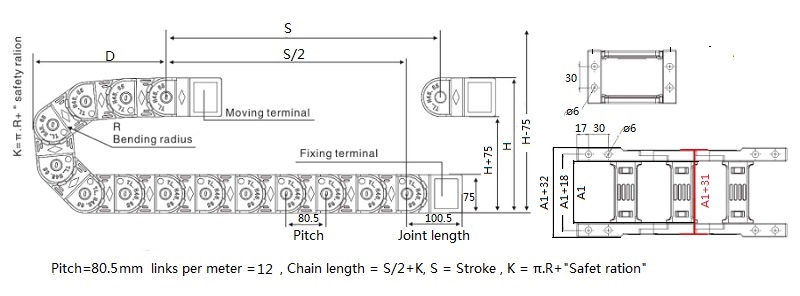

HC55.50 55×50 75×80 R100
R125
R150
R200
R250
R300
80.5 13 50 Enclosed type
HC55.60 55×60 75×90
HC55.75 55×75 75×105
HC55.90 55×90 75×120
HC55.100 55×100 75×130
HC55.125 55×125 75×155
HC55.150 55×150 75×180
HC55.175 55×175 75×205
HC55.200 55×200 75×230

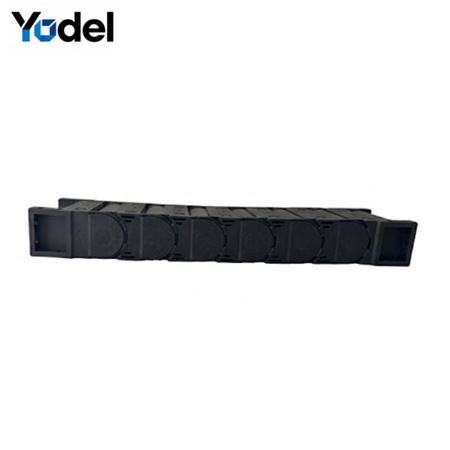

45mm Series Technical Specs

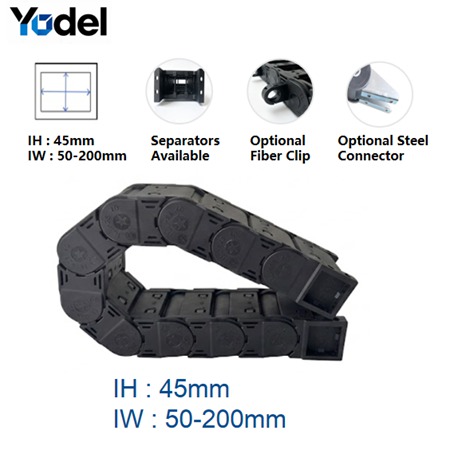

Engineered for precision automated machinery, our 45mm inner height nylon cable drag chain ensures reliable energy routing. Key parameters include:

  • Internal Cavity Height: 45mm inner height housing heavy multi-core power bundles.

  • Flexible Radius Range: Dynamic bending options spanning from 75mm to 300mm.

  • Pitch & Density Ratio: Precision 68.1mm pitch architecture requiring 14 links per meter.

  • Maximum Cable Allowance: Safely accommodates thick conduits up to 40.5mm outer diameter.

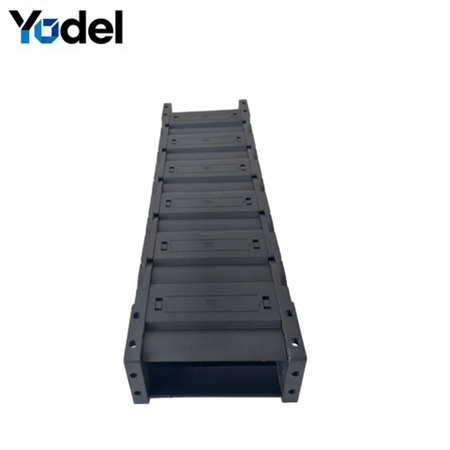

55mm Series Technical Specs

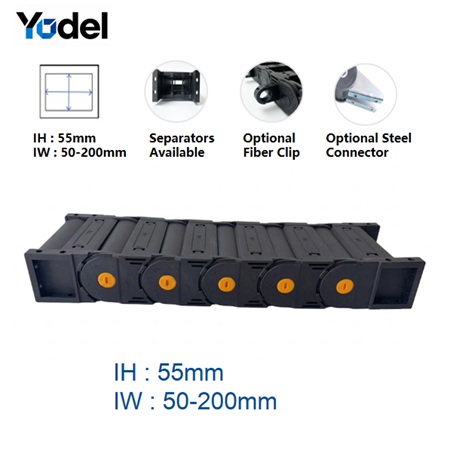

Designed for heavy CNC machining centers, our 55mm inner height nylon cable drag chain delivers maximum structural capacity. Key parameters include:

  • Internal Cavity Height: 55mm inner clearance accommodating thick hydraulic hose assemblies.

  • Flexible Radius Range: Versatile bending options ranging from 100mm to 300mm.

  • Pitch & Density Ratio: Precision 80.5mm pitch layout requiring 13 links per meter.

  • Maximum Cable Allowance: Safely houses heavy conduits up to 50mm outer diameter.

Severe Industrial Equipment Applications

Built to endure relentless mechanical stress, our versatile nylon cable drag chain excels across demanding automated machinery sectors:

  • Enclosed CNC Milling Centers: Shielding spindle power leads against hot metal shavings.

  • Automated Laser Cutting Units: Maintaining clean linear travel across high-speed gantries.

  • Heavy Gantry Routers: Protecting sensitive feedback cables from abrasive dust.

  • Specialized Robotic Arms: Providing low-friction dynamic routing during rapid motion loops.

Proven Global Deployment Success

A leading European machine tool builder recently retrofitted their high-speed gantry milling lines with our nylon cable drag chain systems. By selecting fully enclosed units equipped with optical fiber separation clips and heavy-duty steel end brackets, the client eliminated internal line wear completely. The reinforced composite frame reduced operational vibration by 45 percent, ensuring flawless zero-downtime performance over millions of high-load motion cycles.

Direct Factory Customization Services

As an independent source manufacturing plant in China, we maintain comprehensive ready-to-ship inventory of this nylon cable drag chain series to fulfill urgent orders immediately. We provide comprehensive OEM and ODM solutions, including custom-cut segment lengths, pre-installed internal partitions, interchangeable steel end brackets, and laser-engraved corporate logos. Contact our engineering support group today to secure instant factory-direct pricing and technical CAD models!

Frequently Asked Questions Overview

Q: Can I upgrade to heavy-duty metal end connectors?
A: Yes, both the 45mm and 55mm models support interchangeable steel end brackets to withstand extreme vibrational loads.
Q: How does the fully enclosed cover block debris?
A: The sealed cover profile prevents hot metal chips, abrasive dust, and coolant splashes from reaching enclosed cables.
Q: Are these reinforced enclosed chain units in stock?
A: Yes, as a direct source manufacturer, we maintain comprehensive ready-to-ship factory inventory for rapid global dispatch.
Online Inquiry
