25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain

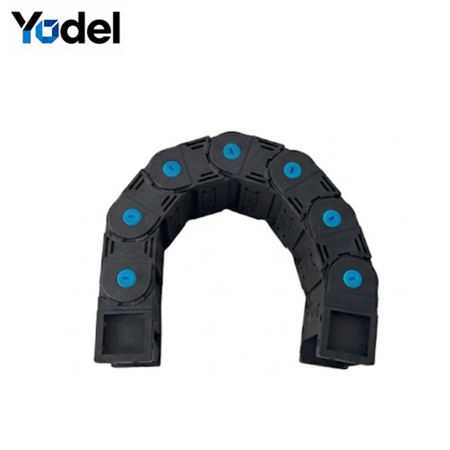

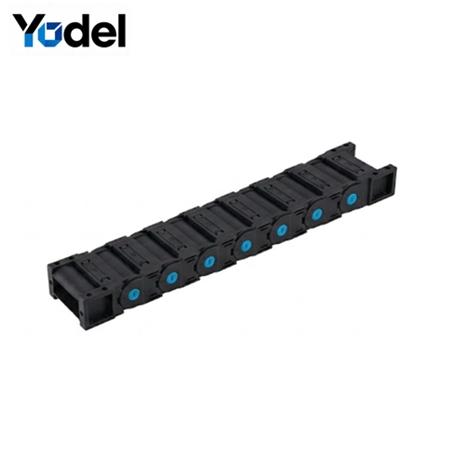

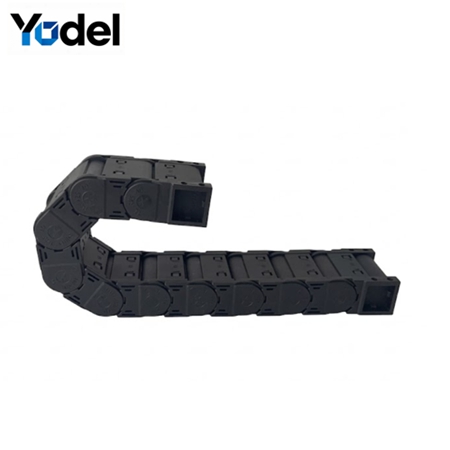

25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain 25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain 25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain 25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain 25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain

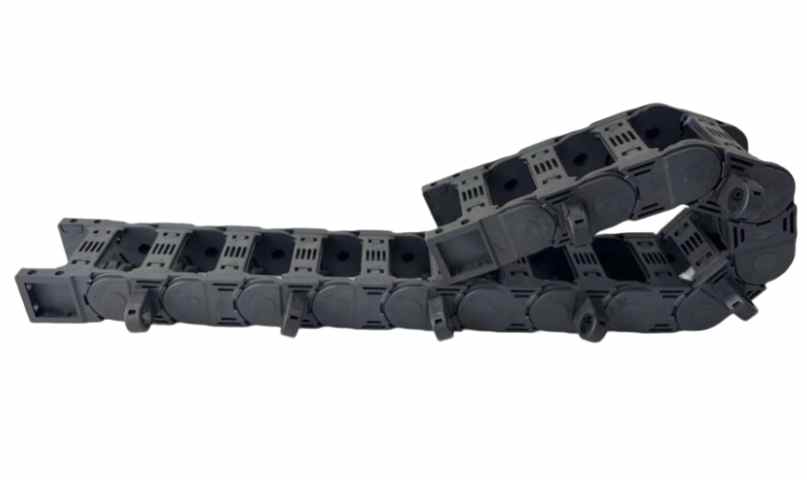

25&35mm Fully Enclosed Plastic Drag Chain with 30% Fiber PA66 for CNC Drag Chain

Product ID : HC25/HC35
Product Attributes :

1. Inner Height:25 mm  35mm

2. Material:PA66 Nylon + ≥30% Glass Fiber

3. Style:Fully enclosed

4. Optional Add-ons:Built-in separators, steel connectors, fiber optic clip

5. Temperature Range:-40°C to +120°C

6. Key Strengths:High load, anti-deformation, wear-resistant

7. Suitable Motion:High-frequency reciprocating

Product Description

Absolute Enclosed Debris Shield

Aggressive workshop environments filled with high-temperature cutting chips, wood dust, and chemical splashes require impenetrable physical armor for moving control circuits. Designed with a fully sealed housing profile, our industrial-grade plastic drag chain ensures complete 360-degree protection against harsh contaminants. Built with thickened link sidewalls and robust side frames compared to standard economy tracks, this heavy-duty plastic drag chain eliminates mid-span sag while guaranteeing stable multi-axis movement.

Premium PA66 Polymer Formula

Exceptional structural endurance stems directly from advanced material chemistry and precision polymer manufacturing. Every single component of our plastic drag chain family is precision-molded from virgin Polyamide 66 combined with a 30 percent structural glass fiber matrix. This specialized engineering composite delivers extraordinary tensile stiffness, superior impact endurance, and enduring thermal stability under heavy factory workloads. Integrated anti-friction elements lower articulation noise while providing reliable dust-proof and chip-proof defense.

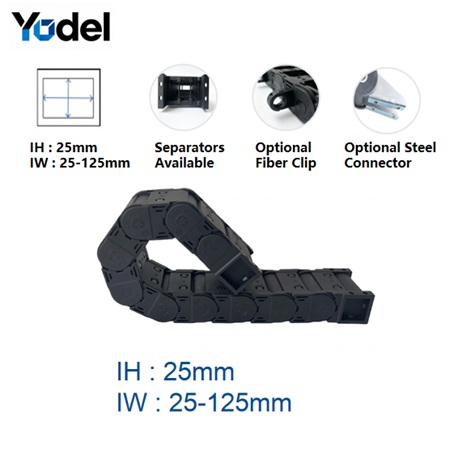

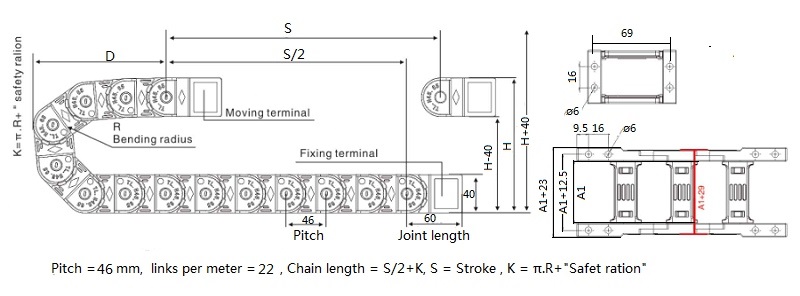

Technical Specifications (25mm Series Enclosed Type)

Model Internal Dimension
(H×W) mm
External Dimension
(H×W) mm
Bending Radius
mm
Pitch
mm
Chain Links per Meter
pcs
Max Cable OD
mm
Opening Method
HC25.25 25×25 40×44 R55
R75
R100
R125
R150
R175
R200
46 22 22.5 Enclosed type
HC25.38 25×38 40×57
HC25.50 25×50 40×69
HC25.57 25×57 40×76
HC25.70 25×70 40×90
HC25.77 25×77 40×96
HC25.103 25×103 40×122
HC25.125 25×125 40×144

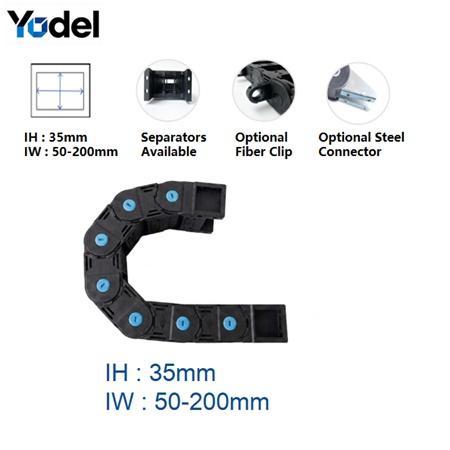

Technical Specifications (35mm Series Enclosed Type)

Model Internal Dimension
(H×W) mm
External Dimension
(H×W) mm
Bending Radius
mm
Pitch
mm
Chain Links per Meter
pcs
Max Cable OD
mm
Opening Method
HC35.50 35×50 55×75 R75
R100
R125
R150
R175
R200
R250
R300
68.1 15 31.5 Enclosed type
HC35.60 35×60 55×85
HC35.75 35×75 55×100
HC35.90 35×90 55×115
HC35.100 35×100 55×125
HC35.125 35×125 55×150
HC35.150 35×150 55×175
HC35.175 35×175 55×200
HC35.200 35×200 55×225

25mm Series Technical Specs

Engineered for compact automated equipment, our 25mm inner height plastic drag chain ensures precise spatial routing. Key parameters include:

  • Internal Cavity Height: 25mm inner height optimized for compact control wires.

  • Flexible Radius Range: Dynamic bending options spanning from 55mm to 200mm.

  • Pitch & Density Ratio: Precision 46mm pitch architecture requiring 22 links per meter.

  • Maximum Cable Allowance: Safely accommodates individual lines up to 22.5mm outer diameter.

35mm Series Technical Specs

Designed for medium-load automation lines, our 35mm inner height plastic drag chain delivers high structural capacity. Key parameters include:

  • Internal Cavity Height: 35mm inner clearance housing multi-core power bundles.

  • Flexible Radius Range: Versatile bending options ranging from 75mm to 300mm.

  • Pitch & Density Ratio: Optimized 68.1mm pitch layout requiring 15 links per meter.

  • Maximum Cable Allowance: Safely houses heavy conduits up to 31.5mm outer diameter.

Severe Industrial Equipment Applications

Built to endure relentless mechanical stress, our versatile plastic drag chain excels across demanding automated sectors:

  • Compact CNC Routers: Shielding control leads against hot metallic cutting chips.

  • Automated Laser Cutters: Maintaining clean linear travel across high-speed optical gantries.

  • Precision Assembly Cells: Protecting pneumatic supply tubes from friction.

  • Robotic Pick-and-Place Arms: Providing low-friction dynamic routing during rapid motion loops.

Proven Global Deployment Success

A leading European automation integrator recently retrofitted their high-speed sorting robots with our plastic drag chain systems. By selecting enclosed units equipped with optical fiber separation clips and heavy-duty steel end brackets, the client eliminated internal line binding completely. The reinforced composite frame reduced dynamic wear by 45 percent, ensuring flawless zero-downtime performance over millions of high-load motion cycles.

Direct Factory Customization Services

As an independent source manufacturing plant in China, we maintain comprehensive ready-to-ship inventory of this plastic drag chain family to fulfill urgent orders immediately. We provide comprehensive OEM and ODM solutions, including custom-cut segment lengths, pre-installed internal partitions, interchangeable steel end brackets, and laser-engraved corporate logos. Contact our engineering support group today to secure instant factory-direct pricing and technical CAD models!

Frequently Asked Questions Overview

Q: Can I replace standard polymer end connectors with metal ones?
A: Yes, both series support interchangeable heavy-duty steel end brackets to withstand extreme vibrational loads.
Q: How does the fully enclosed structure block debris?
A: The sealed cover profile prevents hot metal chips, abrasive dust, and liquid splashes from reaching enclosed cables.
Q: Are these reinforced enclosed chain units in stock?
A: Yes, as a direct source manufacturer, we maintain comprehensive ready-to-ship factory inventory for rapid global dispatch.
